In the global pursuit of quantum computing, the unknowns still largely outnumber the aspects of certainty. While it is too early to assess which of the many technology options will prove to be the winning candidate in final applications, important strides forward are being made on each of the explorative routes. In one of these routes, namely spin qubits, imec used its semi-industrial 300mm process flow to create qubit devices, of which some important characteristics match lab-based results. Imec presents this positive improvement at the renowned 2021 Symposia on VLSI Technology and Circuits (June 13-19).
One of the challenges in quantum computing is to achieve high uniformity in qubit arrays to lower noise and improve coupling between individual qubits. One way to overcome the challenge is by improving process control. For the first time, imec realized an array of electron-spin qubits with high uniformity and low charge-noise levels of 3.6µ√Hz at 1Hz; which matches lab-scale results.

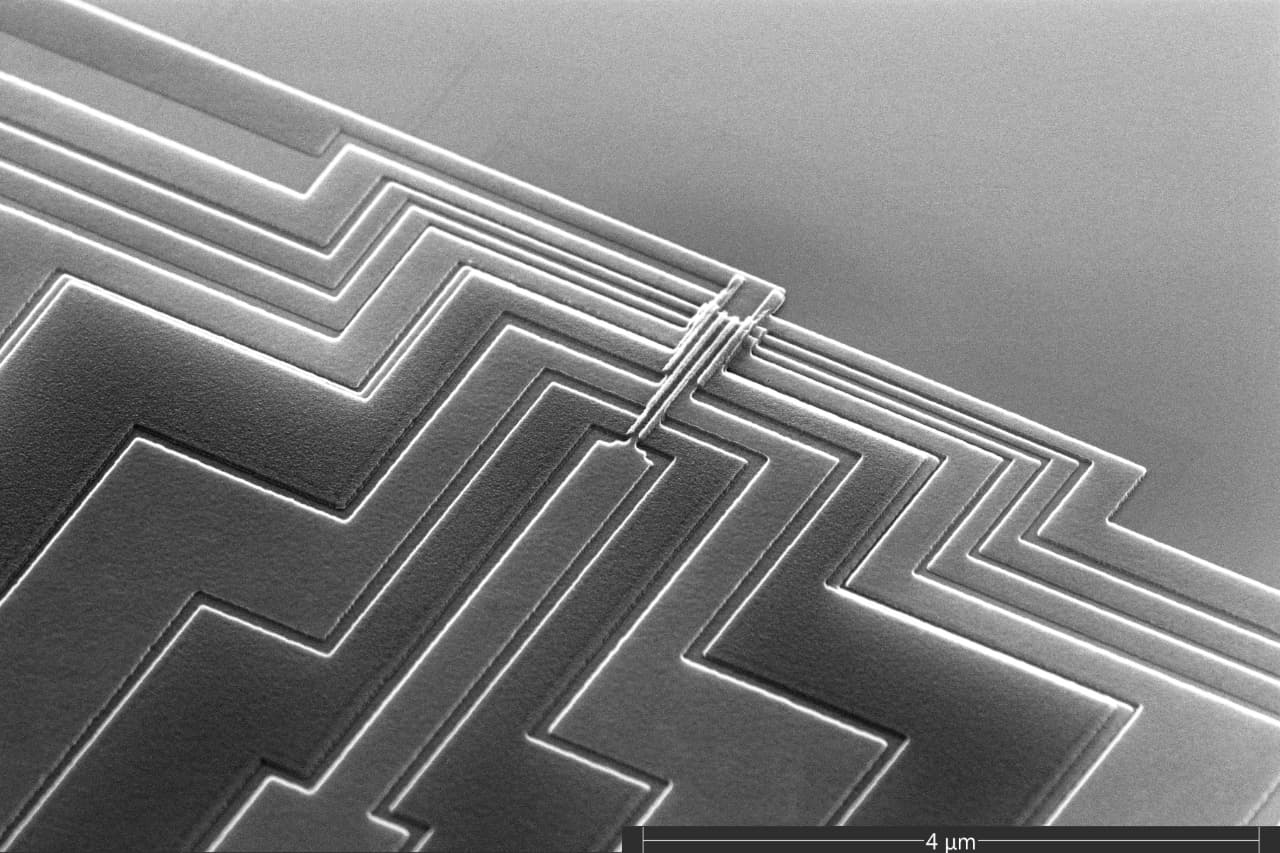

Top view SEM picture of a Si MOS qubit structure, fabricated in imec’s 300mm pilot line, featuring an All-Silicon gate stack process.
In parallel to the 300mm process integration, imec also introduced some new design choices. Notably, researchers made an important change in the material stack. Where they previously used TiN in the gate stack, they opted for a novel overlapping polycrystalline silicon gate stack instead. This ‘all-silicon’ approach should be beneficial for the thermal compatibility at cryogenic temperature because of fewer strain-related disorders, as was confirmed by uniform Vth distributions collected on randomly selected test transistors for temperatures down to 8milliKelvin.
Additional features that showed excellent results were the interface mobility, plus the interdot-coupling control and its reproducibility. Very large mobilities of up to 15,000cm2/Vs were measured at a temperature of 10Kelvin. These mobilities match state-of-the-art and are an important parameter for the low number of device impurities and defects. For reference, traditional silicon transistors have a mobility of 70 cm2/Vs at room temperature.
Researchers also demonstrated reproducible and symmetric tunnel-coupling (tc) control up to 100GHz over nearly two decades (2-100GHz). This is an important indicator of how well adjacent qubits can be connected to each other and operated, a must-have for building qubit arrays.

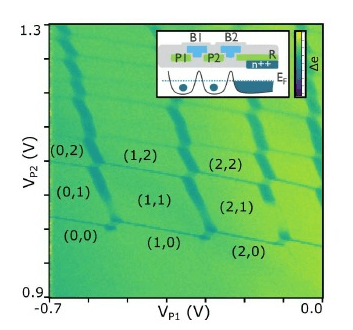

Double quantum dot stability map shows the electron occupation in dot 1 and 2 under gates P1 and P2.
These low-disorder, uniform qubit devices and 300mm fab integration pave the way for fast scale-up to large quantum processors. Imec warmly welcomes industrial partners, startups as well as established players, to set up partnerships and actively join in on further research and development. Full details of these latest achievements can be found in the VLSI paper (JFS5 & Technology / Circuits Joint Focus Session 5 - Circuit and Technology for Quantum Computing – scheduled Saturday, June 19, 2021).
